Polyurethaner Coated Wheel

Description :

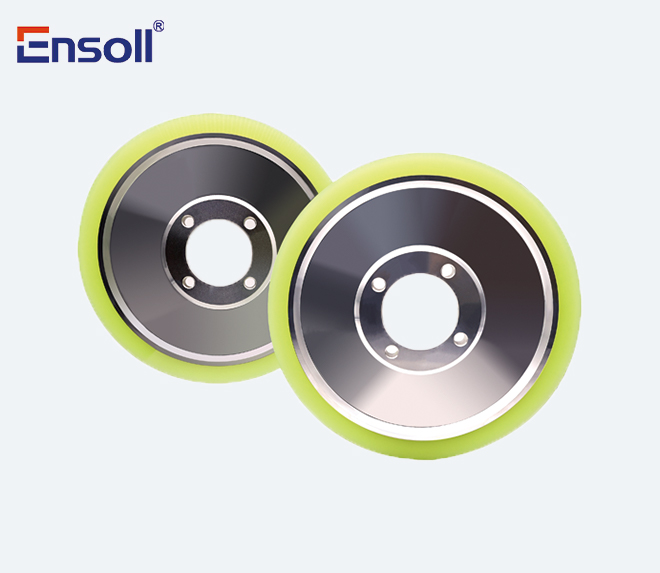

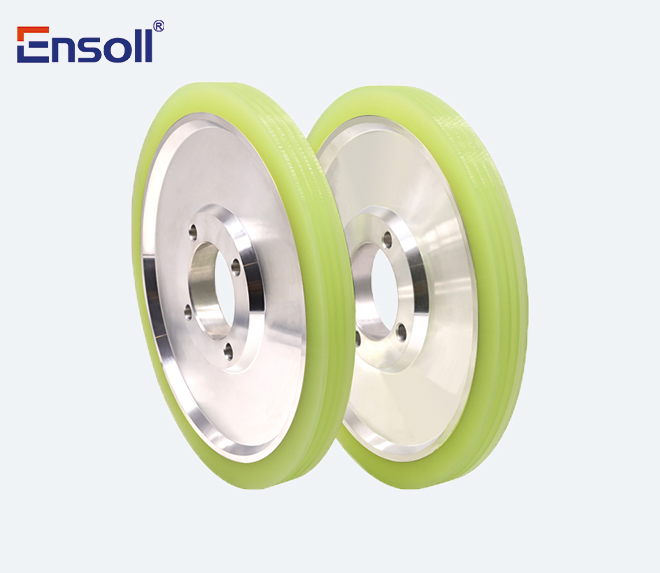

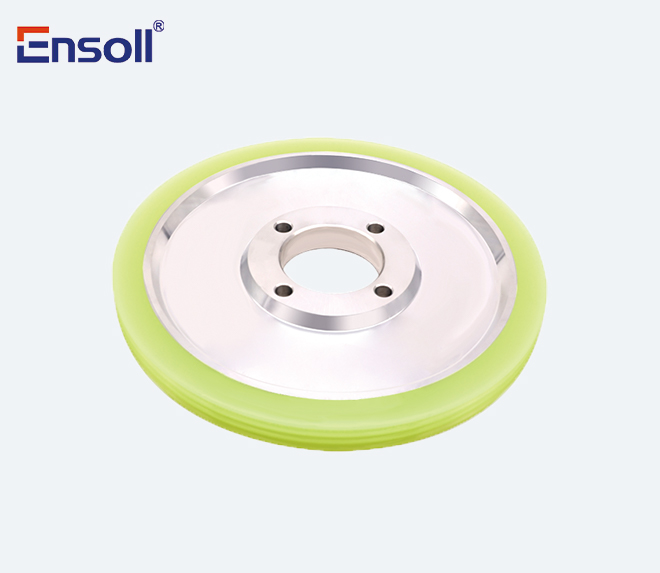

This polyurethane-coated wheel features an aluminum core with an outer layer of polyurethane, which serves to protect the wire and extend the wheel's lifespan. Typically, the wheel is designed with three wire grooves, each capable of lasting up to 720 hours of use.

Send Message

Features :

This polyurethaner Coated Wheel /pulley is made by Ensoll.
There are some stock model like 300mm, 265mm,230mm,500mm and so so on,and which can also be customized in any spec .

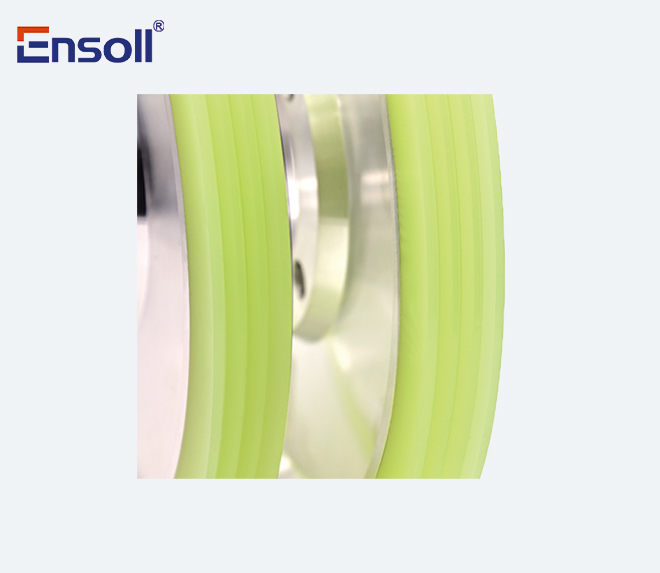

as you can see the outside of the aluminum is polyurethane，which can protect the wire and increase the wheel life，normally there are 3 wire grooves, each groove can be used until 720 hours

Pls contact us freely if you have any needs about the wheel

We can also provide all part of endless wire saw machine to support machinery company build machines.including endless cutting wire ,bearing, flange and so on

Technical Parameters :

No	Model	Outer diameter	Inner Diameter	Thickness	Wire Grooves	Groove Deepth	Groove Width	Index hole	CoatingWidth
1	G1-200/42	200	42	8	1	2.5	2.5	4	7
2	G3-200/70	200	70	14	3	2.5	2.5	3	15
3	G3-220/55	220	55	18	3	2.5	2.5	3	15
4	G3-250/55	250	55	18	3	2.5	2.5	3	15
5	G3-260/70	260	70	18	3	2.5	2.5	3	15
6	G3-265/70	265	70	18	3	2.5	2.5	3	15
7	G3-300/25	300	25	18	3	2.5	2.5	3	15
8	G3-300/55	300	55	18	3	2.5	2.5	3	15
9	G3-350/25	350	25	18	3	2.5	2.5	3	15
10	G3-350/55	350	55	18	3	2.5	2.5	3	15
11	G3-400/25	400	25	18	3	2.5	2.5	3	15
12	G3-400/100	400	100	18	3	2.5	2.5	6	10
13	G3-400/100	500	100	16	1	3.5	2.5	6	22.5

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.

Cutting video：
