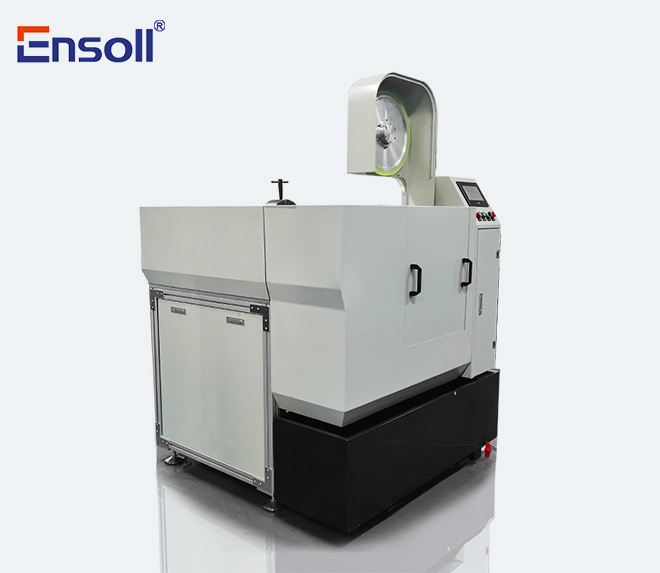

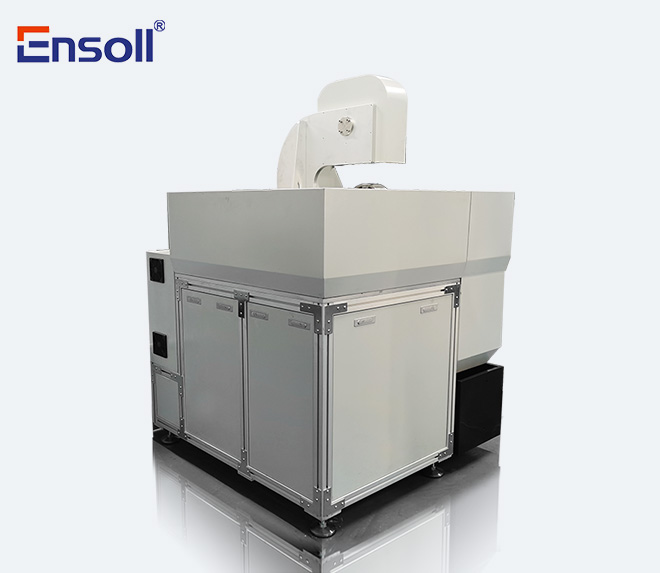

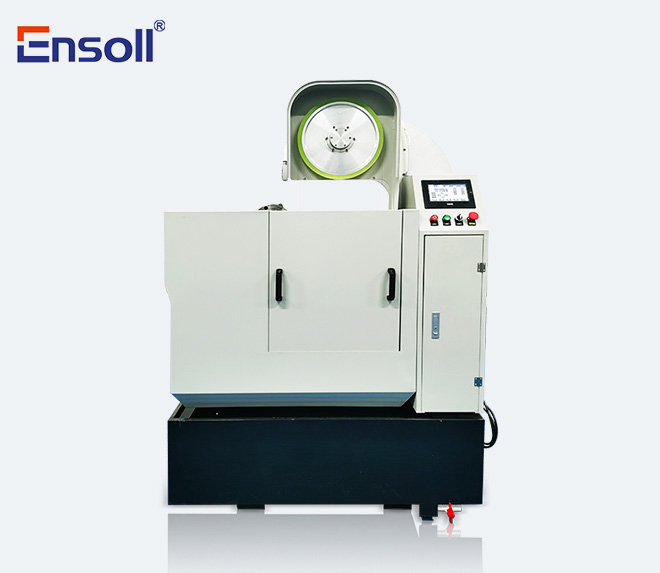

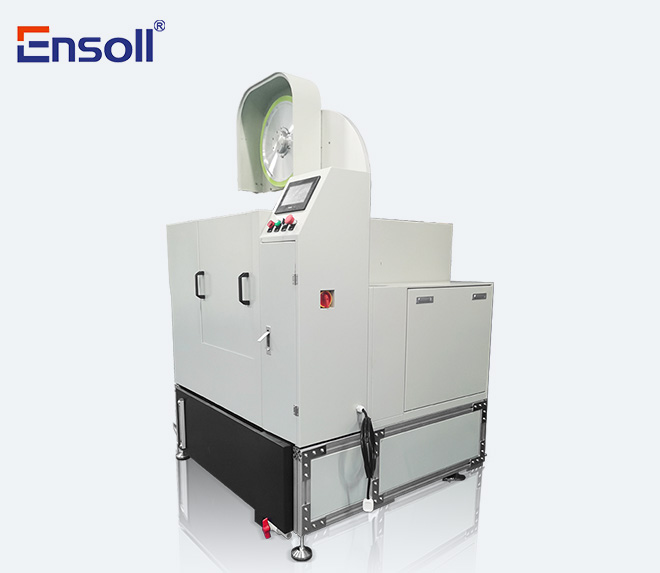

ESV350-2T

Description :

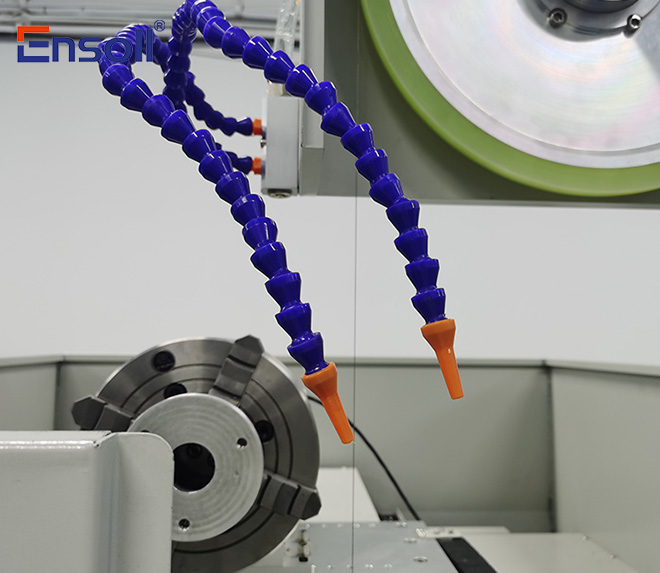

This 350 Vertical Cutting Equipment features a rotary head cutting system, ensuring high equipment accuracy with minimal dimensional tolerance. It is user-friendly, incorporating a cleverly designed tension structure for intelligent tension force adjustment.

Send Message

Features :

1. Single person can change lines in just 1 minute, significantly reducing line-changing time.

2. Continuous operation of the equipment is worry-free, increasing productivity by 30%!

3. Solves the industry problem of chipping, enhancing cutting quality by 20%

4. Dry and wet separation, no dust pollution; water recycling system, energy saving, and emission reduction.

5. Data provided by the digital testing platform enables the best cutting parameters and optimal cutting solutions.

Technical Parameters :

Electric	220v
Machine size	800mm×650mm×1600mm(LxWxH)
Total power	1.5Kw
Total weight	250KG
Worktable load capacity	100kg
Drive mode	Servo
Maximum speed	2800 RMP
Wire length	2630mm
Cutting thickness	0.1-200mm(adjustable)
Maximum cutting size	200mm×200mm×200mm(L×W×H)
Maximum cutting size when rotated	φ200×120mm
Water tank size	680×610×540mm(150L)
Maximum linear speed	38m/s

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.
