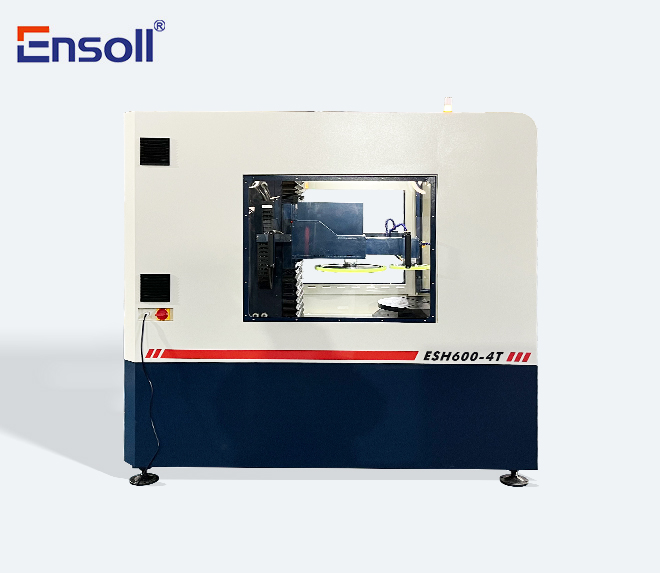

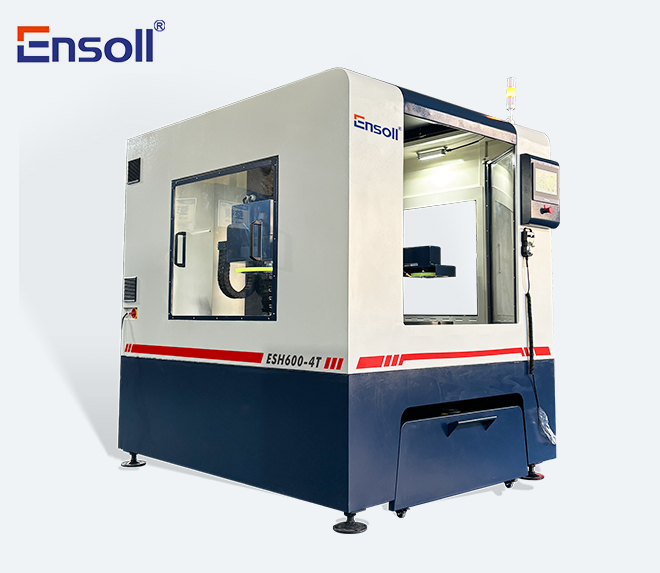

ESH600-4T

Description :

The ESH600 diamond wire saw cutting machine has a larger size compared to the similar ESH300 cutter, making it suitable for cutting various hard and brittle materials, especially large-sized materials.

Send Message

Features :

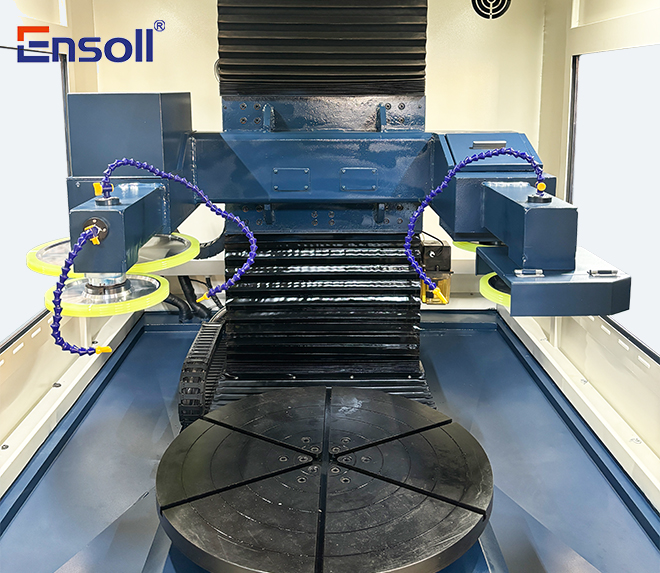

1. Built-in Rotating Cutting Function

2. Larger Cutting Size Compared to Similar Equipment

3. Foolproof operating interface, easy to use; The electronic control scheme has undergone 6 iterations, making it more stable and easier to operate. Comprehensive foolproof design effectively prevents user mishandling.

4. Dry and wet separation, no dust pollution, purifying the work environment.

5. Data provided by the digital testing platform enables the best cutting parameters and optimal cutting solutions.

Technical Parameters :

Machine size	1600mm×1250mm×1500mm(LxWxH)
Loding table size	600mm×600mm
Total weight	1Ton
Max cutting size	600mm×800mm×450mm(LxWxH)
Water tank capacity	0.12㎡
Loading capacity	500KG
Power	3000W
Feed distance	600mm×450mm(L×H）
Mator speed	3000RMP
Cutting thickness	0.1-450mm（adjustable)
Positioning accuracy	±0.05mm
Max linear spend	44m/s

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.

Cutting video：
