ESV-3S

Description :

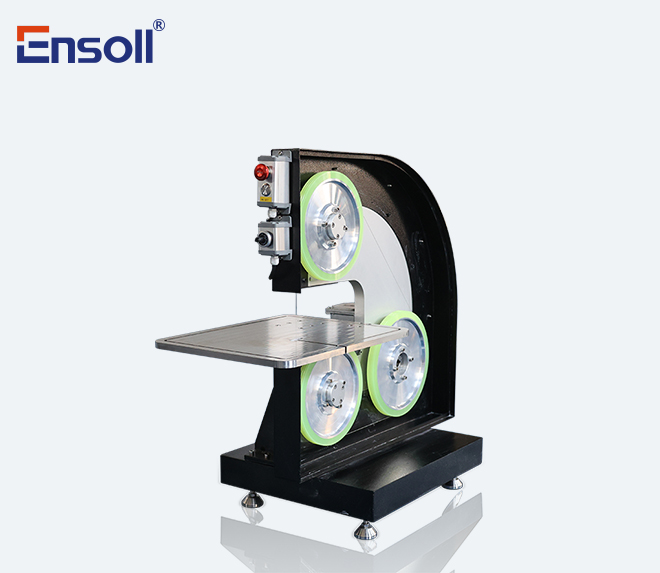

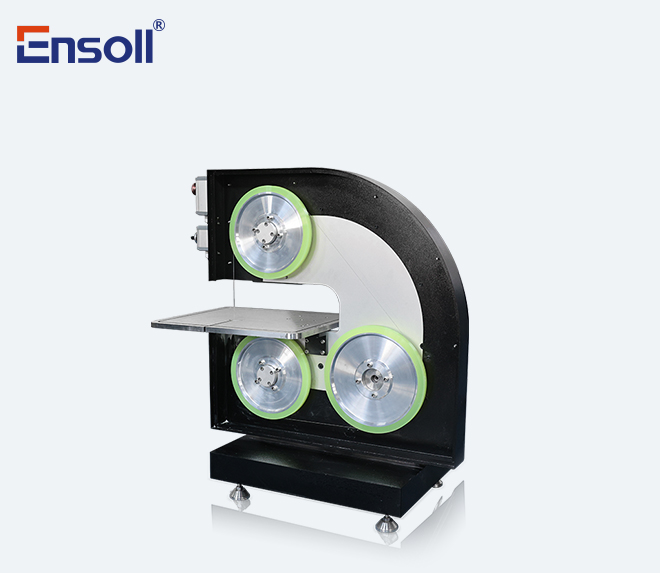

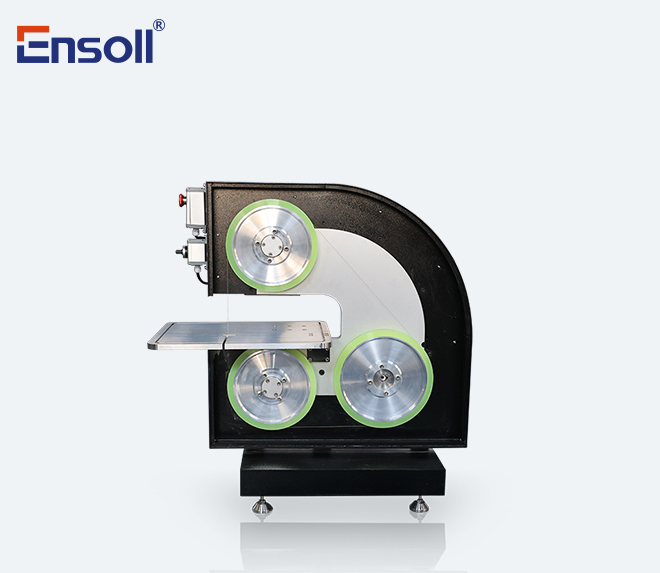

The ESV-3S diamond wire cutting machine is compact in size, easy to operate, occupies a small footprint, saving space, and is very suitable for laboratory or home use.

Send Message

Features :

1.Customized to fit, with a simplified structure.

2.Occupies a small footprint, saving space.

3.Can be rethreaded by a single person in 1 minute, significantly reducing rethreading time.

Technical Parameters :

Electric	220v
Machine size	810x485x800mm(LxWxH)
Loding table size	250x250x90mm(LxWxH)
Machine weight	80KG
Power	0.75KW
Mator speed	1400 RMP
Positioning accuracy	±0.03mm
Max cutting size	350x2350x350mm(LxWxH)
Feed method	Servo motor
Loading capacity	20 KG
Feed distance	350x350 mm(LxH)

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.

Cutting video：
