Description :

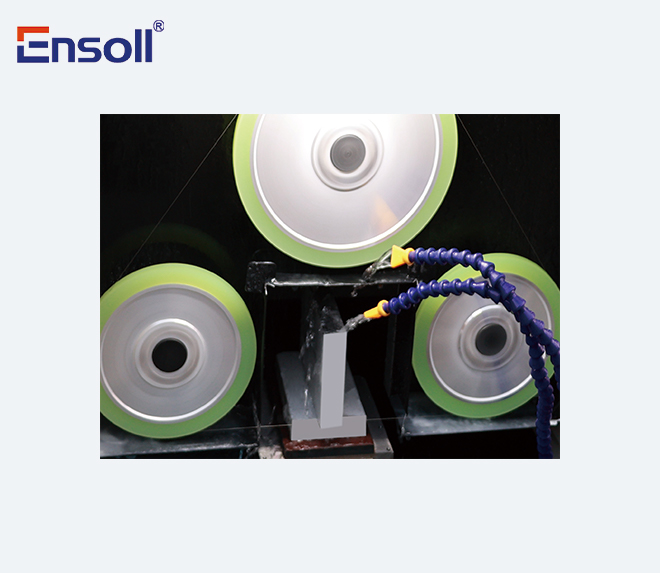

This polyurethane-coated wheel features an aluminum core with an outer layer of polyurethane, which serves to protect the wire and extend the wheel's lifespan. Typically, the wheel is designed with three wire grooves, each capable of lasting up to 720 hours of use.
Send Message

Features :

1.High-Precision Cutting

The cutting precision reaches ±0.05mm, with a surface roughness as low as Ra 0.5μm, meeting the demands of high-precision processing.

Suitable for cutting ultra-thin materials, with a minimum cutting thickness of 0.1mm.

2.Multi-Functional Applicability

Capable of cutting various hard and brittle materials, including silicon wafers, sapphire, ceramics, glass, stone, composite materials, and more.

Wide cutting thickness range, from 0.1mm to 50mm, catering to different material requirements.

3.High-Efficiency Cutting Speed

The cutting speed can reach up to 20mm²/min, significantly improving experimental and production efficiency.

Automated cutting mode reduces manual intervention and enhances consistency.

4.Compact Desktop Design

The equipment features a small footprint, occupying only 0.5㎡, making it ideal for laboratories and small workshops.

The user-friendly interface supports one-click operation, ensuring ease of use.

5.Low Consumable Costs

The diamond wire has a long service life, with a single wire capable of cutting over 1000 meters of material, reducing consumable costs.

The equipment is easy to maintain and has low operating costs.

Technical Parameters :

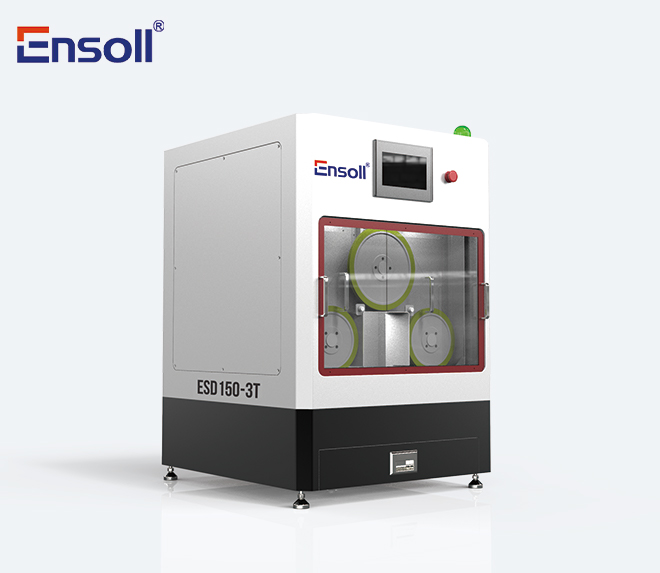

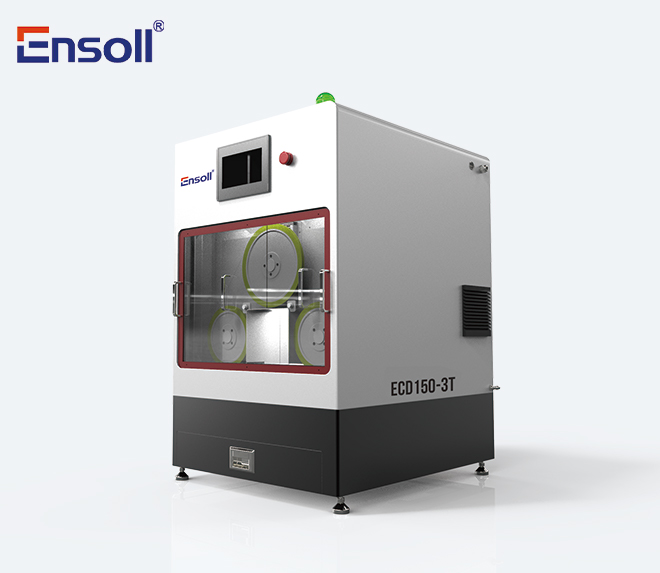

Equipment size: 650mm*750mm*980mm(L*W*H)
Equipment weight: 230Kg
Workbench size: 150*150mm
Feed speed: 0.1-10mm/min
Cutting line speed: 0-35m/s
Cutting stroke: 150*150mm (Y axis*Z axis)
Maximum cutting size: 150*150*150mm(L*W*H)
Drive mode: same service
Working voltage: 220V
Workbench load: 10Kg
Total power: 1.8KW (estimated)
Wire length: 1470±5mm (tentative, final wire length confirmed after trial cutting)
Wire wheel: two 180mm, one 230mm (single slot)
Wire diameter: 0.35mm

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

  • Silicon cutting

  • Optical glass cutting

  • Graphite/Corrugated paper

  • Ceramic/Target cutting

  • Crystal Cutting

  • Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.
