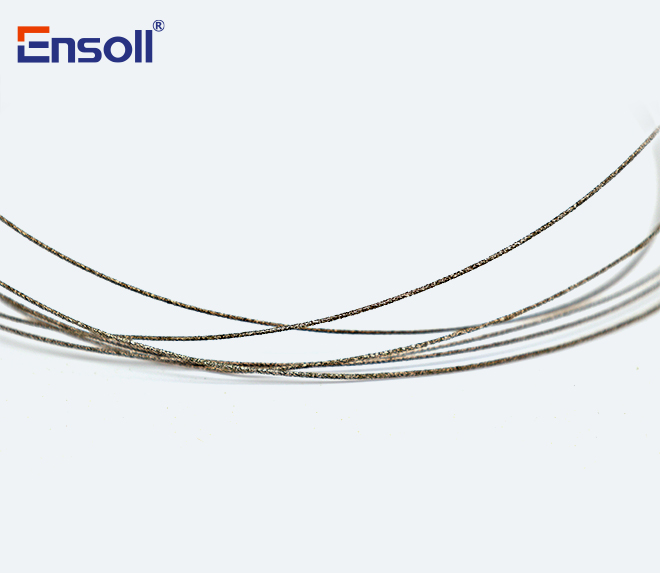

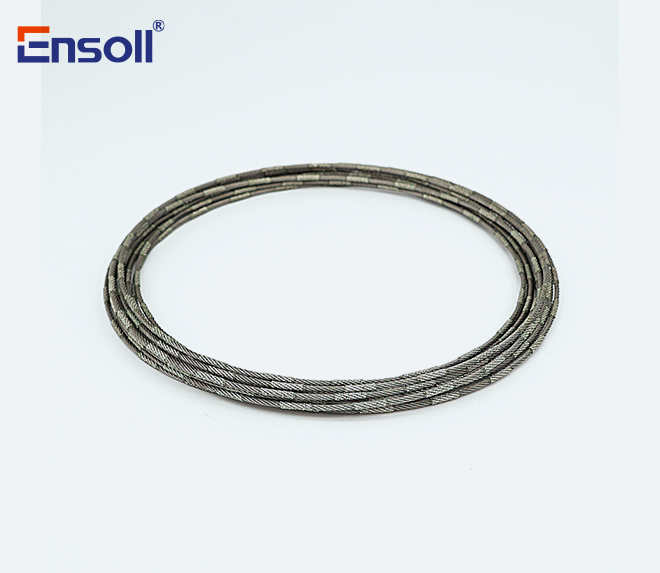

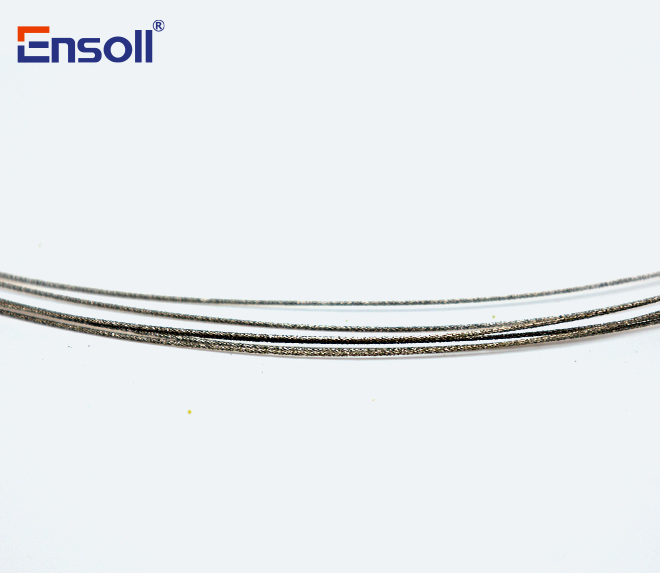

Diamond Wire Loop

Description :

We have diamond wire loops in various specifications, suitable for cutting various hard and brittle materials, such as optical glass, magnetic materials, target materials, neodymium iron boron, graphite, single crystal silicon, polycrystalline silicon, rubber, metals, sapphire, etc. The high tensile strength of the wire, strong crystal grain bonding, and the high quality of the diamond wire loops and diamond grains provide excellent cutting performance.

Send Message

Features :

1.Endless loop make 1 way cutting which ensures extremly high linear speed

2.Low cutting costs, no need for cooling systems and grinding fluids, minimal kerf loss.

3.Customizable options available to tailor different wire production techniques based on the unique materials that customers require cutting.

Technical Parameters :

Diamond Wire Loop Parameters
Outer Diameter	Core Wire	Grain Size EN	Coating Method	Tension	Breaking Force	Recommend Loop Length	Max Loop Length	Cooling
(mm)	(mm)	Grain Size EN		(N)	(N)	(mm)	(mm)	Cooling
0.3	0.24	D25	Complete	60-80	158	1000-3000	30000	Dry/wet
0.35	0.24	D46	Complete	60-80	158	1000-3000
0.45	0.3	D46	Complete	80-100	213	1000-6000
0.5	0.36	D76	Complete	100-120	287	1000-6000
0.6	0.39	D107	Complete	100-120	255	1000-6000
0.8	0.51	D126	Complete	120-140	410	1000-6000
1.0	0.69	D126	Complete	160-180	738	1000-6000
1.5	1.2	D126	Sectional	200-240	2200	2500-10000
1.8	1.2	D301	Sectional	200-300	2200	2500-10000
2.5	2	D301	Sectional	300-400	8700	2500-10000
3.5	3	D301	Sectional	300-400	16000	2500-10000

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right diamond wire loop specifications?

1.The hardness of your material and the size of the materials before cutting.

2.Precision requirements for cutting.

3.If any special request for cutting.
