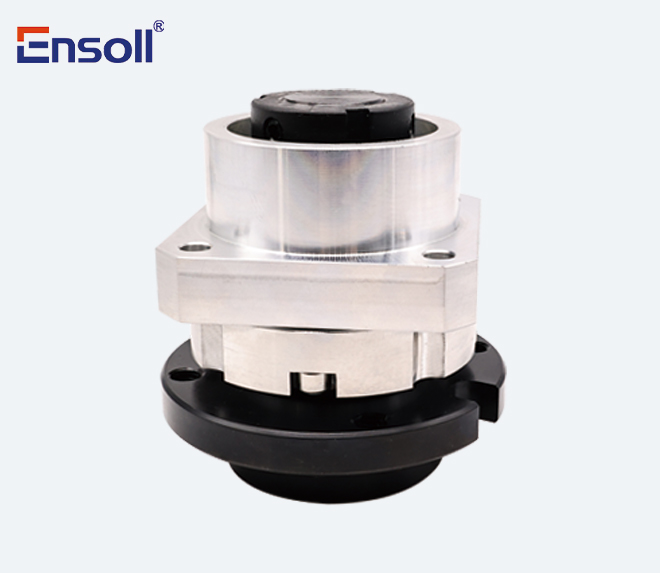

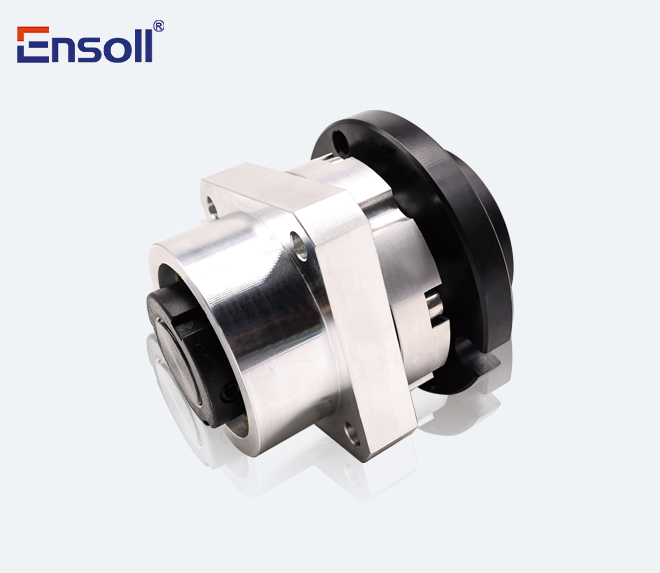

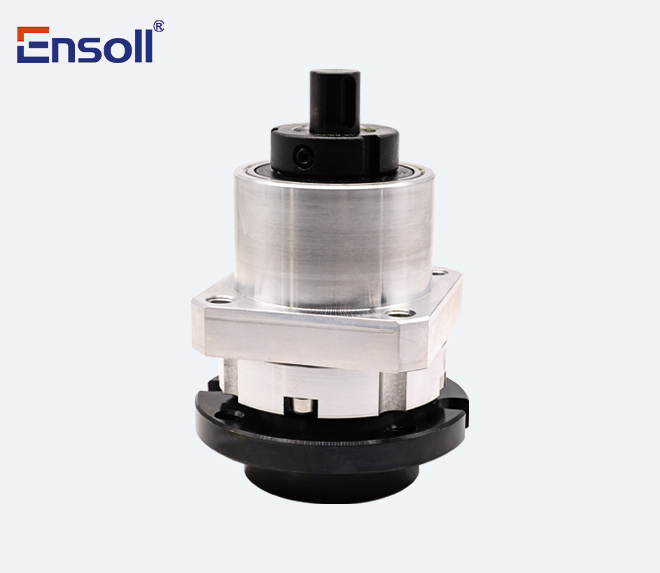

Bearing Seating

In the Diamond Wire Saw Cutting Machine, the Active Driven Wheel and Passive Driven Wheel are two critical components that work together to ensure efficient and stable operation. These components play a vital role in supporting, driving, and guiding the cutting process, directly impacting cutting precision and equipment lifespan.

1. Active Driven Wheel

Function:
The Active Driven Wheel is the core power transmission component of the Diamond Wire Saw Cutting Machine. It transfers the motor's power to the diamond cutting wire, driving it to operate at high speeds for efficient cutting.

Features:

High-Precision Bearing Design: Equipped with high-precision bearings to ensure stability and low vibration during high-speed operation, reducing equipment wear.

Wear-Resistant Material: Made of high-strength alloy steel or special composite materials, with a hardened surface for excellent wear resistance and fatigue resistance.

Dynamic Balance: Rigorously tested for dynamic balance to eliminate eccentric vibrations during high-speed operation, enhancing cutting accuracy.

Efficient Power Transmission: Optimized gear or belt drive design ensures maximum power transmission efficiency and reduced energy consumption.
Applications:
Ideal for cutting hard materials such as marble, granite, concrete, and ceramics, especially suited for high-precision and high-efficiency industrial cutting needs.

2. Passive Driven Wheel

Function:
The Passive Driven Wheel is primarily used to support and tension the diamond cutting wire. It works in tandem with the Active Driven Wheel to ensure the cutting wire maintains stable tension and correct movement during operation.

Features:

• High-Rigidity Structure: Constructed with high-strength materials to prevent deformation under high tension, ensuring cutting wire stability.
• Precision Bearings: Equipped with high-precision bearings to reduce friction and extend service life.
• Adjustable Design: Allows for tension adjustment, enabling users to optimize cutting wire tension based on specific cutting requirements.
• Corrosion-Resistant Treatment: Surface treated with anti-rust coatings, making it suitable for use in humid or harsh environments.

Applications:
Widely used in stone processing, construction material cutting, metal processing, and other fields, particularly suitable for long-term continuous industrial operations.

---

Product Advantages:

• High Reliability: Both the Active Driven Wheel and Passive Driven Wheel are made from premium materials and manufactured with precision, ensuring reliable performance under long-term heavy loads.
• Efficient Cutting: Optimized design ensures smooth operation of the cutting wire, significantly improving cutting efficiency.
• Low Maintenance Costs: Wear-resistant and corrosion-resistant designs reduce maintenance frequency and lower operational costs.
• Wide Applicability: Suitable for cutting various hard materials, meeting the processing needs of different industries.

Conclusion:

The Active Driven Wheel and Passive Driven Wheel are the core components of the Diamond Wire Saw Cutting Machine. Their coordinated operation ensures efficient and stable performance. Whether for high-precision cutting or large-scale production, our products deliver exceptional performance and reliable solutions.

For more information or customized requirements, feel free to contact us!

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.
